Cars / e36 / Body & Interior / Power Seat Gear Replacement

Power Seat Gear Replacement

5.) Now you can carefully remove the entire seat from the car, or do what I did, which was simply turn it upside down in the car. The next thing that you are going to want to do is to remove the black plastic kick plate, there’s only one T-30 torx bolt holding it on:

100_1756

6.) Now that you have removed the kick plate, the 2 motors and gearbox should now be visible:

100_1719

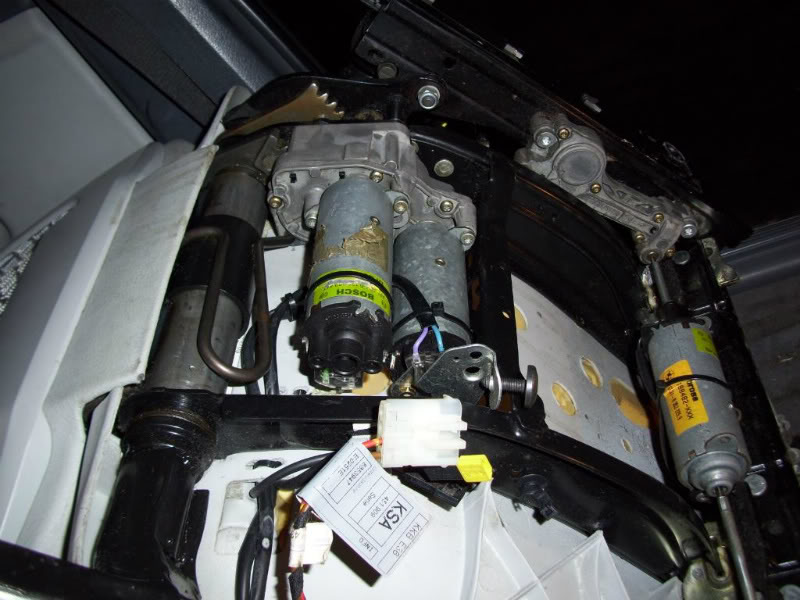

7.) Now you are going to want to remove the 2 motors, there are two T-25 torx screws on each motor that connects it to the gear box. You will have to remove the motor which is sitting on the top first:

100_1721
